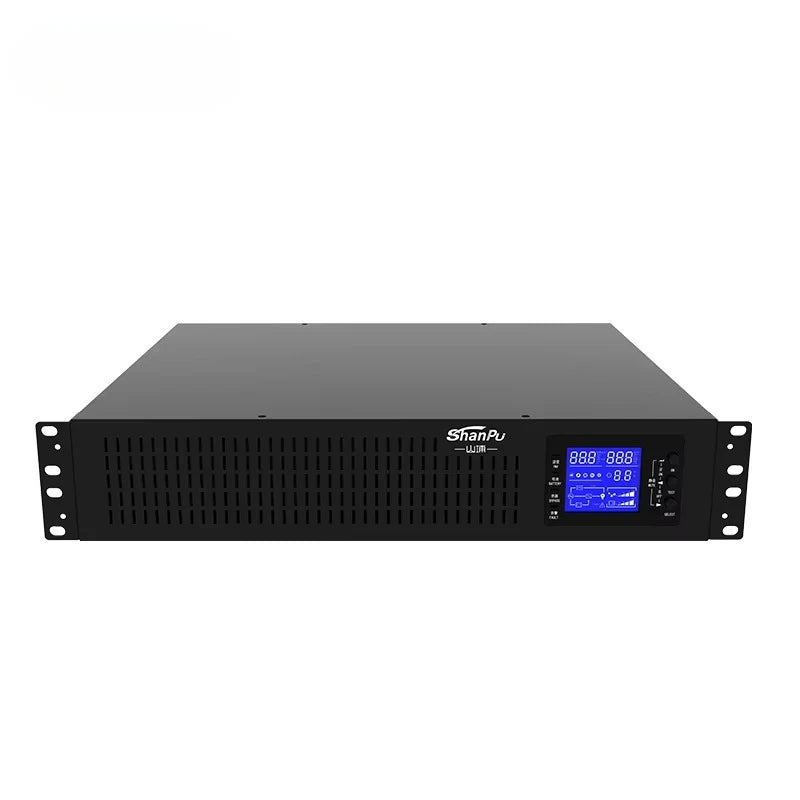

Rack Mount Single Phase Online UPS 1KVA 2KVA 3KVA Uninterruptible Power Supply Double Conversion Online Ups
$465.99
Product Paramenters
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Output power factor correction
4. Wide input voltage range(110-300VAC)
5. Converter mode available
6. ECO mode for energy saving only available for 1-3KVA models
7. Generator compatible
8. Adjustable charging current via LCD or software(1A-6A)
9. Comprehensive display allows easy monitoring access of UPS status
2. Microprocessor control optimizes reliability
3. Output power factor correction
4. Wide input voltage range(110-300VAC)
5. Converter mode available
6. ECO mode for energy saving only available for 1-3KVA models
7. Generator compatible
8. Adjustable charging current via LCD or software(1A-6A)
9. Comprehensive display allows easy monitoring access of UPS status
|
Model
|
|
C1KR(S)
|
C2KR(S)
|
C3KR(S)
|
C6KR(S)
|
C10KR(S)
|
||||||
|
Phase
|
|
Single phase
|
|
|
|
|
||||||
|
Capacity
|
|
1KVA/900W
|
2KVA/1800W
|
3KVA/2700W
|
6KVA/4800W
|
10KVA/8000W
|
||||||
|
Input
|
|
|
|
|
|
|
||||||
|
Input woltage
|
|
100/110/115/120/127VAC or 200/208/220/230/240VCA
|
|
|
|
|
||||||
|
Voltage range
|
|
55-145VAC/110-300VAC @50% load
85-140VAC/160-280VAC @100%6 load
|
|
|
110-300VAC+3%@50% load
176-300VAC+3%@100% load
|
|
||||||
|
lnput frequency
|
|
46-54HZ or 56-64HZ
|
|
|
|
|
||||||
|
Factor
|
|
≥0.99@100% load
|
|
|
|
|
||||||
|
Output
|
|
|
|
|
|
|
||||||
|
Output voltage
|
|
100/110/115/120/127VAC or 200/208/220/230/240VCA
|
|
|
|
|
||||||
|
Voltage range (battery mode)
|
|
±1%
|
|
|
|
|
||||||
|
Frequency synchronous range
|
|
46-54HZ or 56-64HZ
|
|
|
|
|
||||||
|
Frequency range (battery mode)
|
|
50Hz±0.25Hz/60Hz±0.3Hz
|
|
|
50Hz/60Hz ± 0.1HZ
|
|
||||||
|
Peak factor
|
|
3:01
|
|
|
|
|
||||||
|
Waveform balance
|
|
≤3%THD(Linear load )
≤6%THD (Noninear load）
|
|
|
|
|
||||||
|
Comversion time
|
|
0ms
|
|
|
|
|
||||||
|
Output waveform
|
|
Pure sine wave
|
|
|
|
|
||||||
|
Efficiency
|
|
|
|
|
|
|
||||||
|
Mains power mode
|
|
92%
|
92%
|
92%
|
92%
|
93%
|
||||||
|
Battery mode
|
|
90%
|
90%
|
90%
|
90%
|
91%
|
||||||
|
Stardard UPS
|
|
|
|
|
|
|
||||||
|
Standard UPS battery
|
Battery model
|
12V/7AH
|
|
|
-
|
|
||||||
|
|
Battery quantity
|
2
|
4
|
4
|
-
|
|
||||||
|
|
charging time
|
Charge to 90% in 4 hours
|
|
|
-
|
|
||||||
|
|
Maximum charging current
|
1.0A (Max)
|
|
|
-
|
|
||||||
|
|
Charging voltage±1%
|
27.4VDC
|
54.7VDC
|
54.7VDC
|
-
|
|
||||||
|
Machine date
|
Size(MM)
|
400*438*88
|
|
|
|
|
||||||
|
|
Weight (KG)
|
11.2
|
16.3
|
17.2
|
-
|
-
|
||||||
|
External batlery UPS
|
|
|
|
|
|
|
||||||
|
Exlernal UPS battery
|
Battery model
|
Depending on the applicant
|
|
|
|
|
||||||
|
|
Battery quanlity
|
2
|
3
|
4
|
6
|
16-20（adjustable)
|
||||||
|
|
Maximumcharging current
|
1A/2A/4A/6A（adjustable)）
|
|
|
|
|
||||||
|
|
Charging woltage ±1%
|
27.4VDC
|
41VDC
|
54.7VDC
|
82.1VDC
|
218,4VDC±1%
|
||||||
|
Machine date
|
Size(MM)
|
400*438*88
|
|
|
|
|
||||||
|
|
Weight(KG)
|
5.6
|
8.6
|
|
13
|
17
|
||||||
|
Display description
|
|
|
|
|
|
|
||||||
|
LCD
|
|
Load size, battery capacity, municipal power mode, battery mode, bypass mode, fauit indication
|
|
|
|
|
||||||
|
Working environment
|
|
|
|
|
|
|
||||||
|
Hurmidity
|
|
20-90%RH@0-40℃（No condensation)
|
|
|
|
|
||||||
|
Noise
|
|
＜50dBA@1m
|
|
|
|
|
||||||
|
Control management
|
|
|
|
|
|
|
||||||
|
Intelligent RS-232/USB
|
|
Support Windows 2000/2003/XP/Visa/2008,Windos7/8. Linux,MAC
|
|
|
|
|
||||||
|
Optional SNMP
|
|
Power management support SNMP and network management
|
|
|
|
|
||||||
