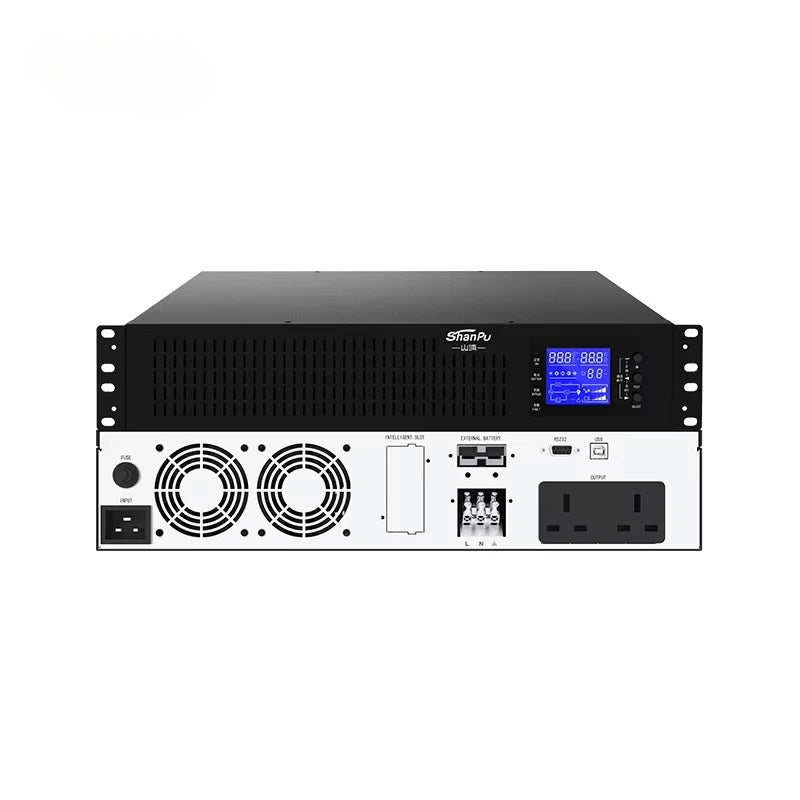

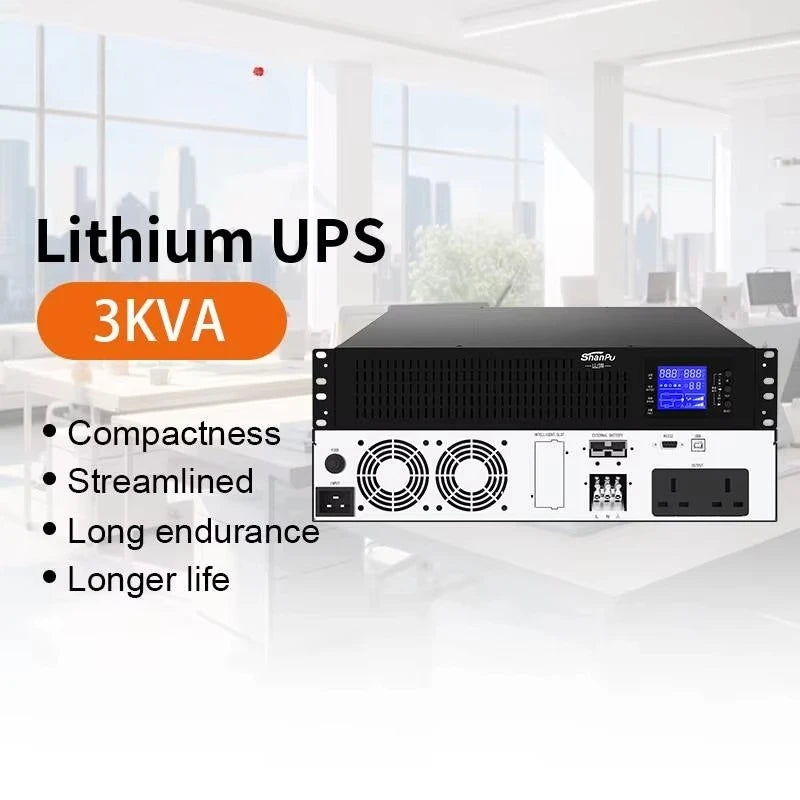

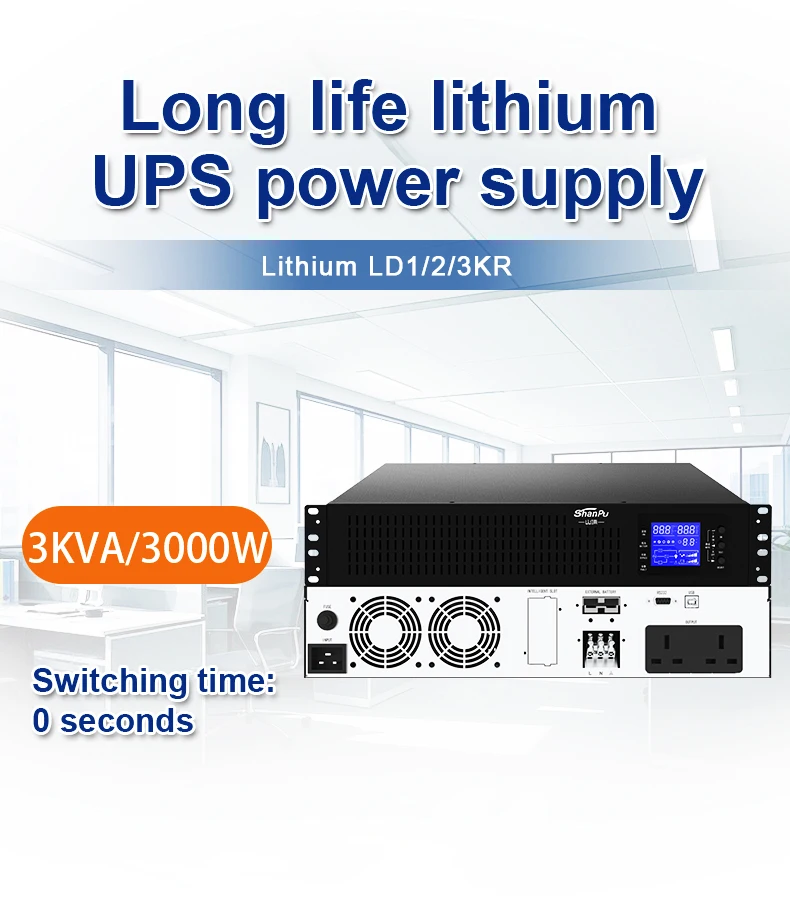

3KVA Online Rack Mounted UPS 960WH Single-phase Built-in Lithium Battery Pure Sine Wave 110V/220V UPS Power Supply
$1,123.99
Product Paramenters
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Output power factor correction

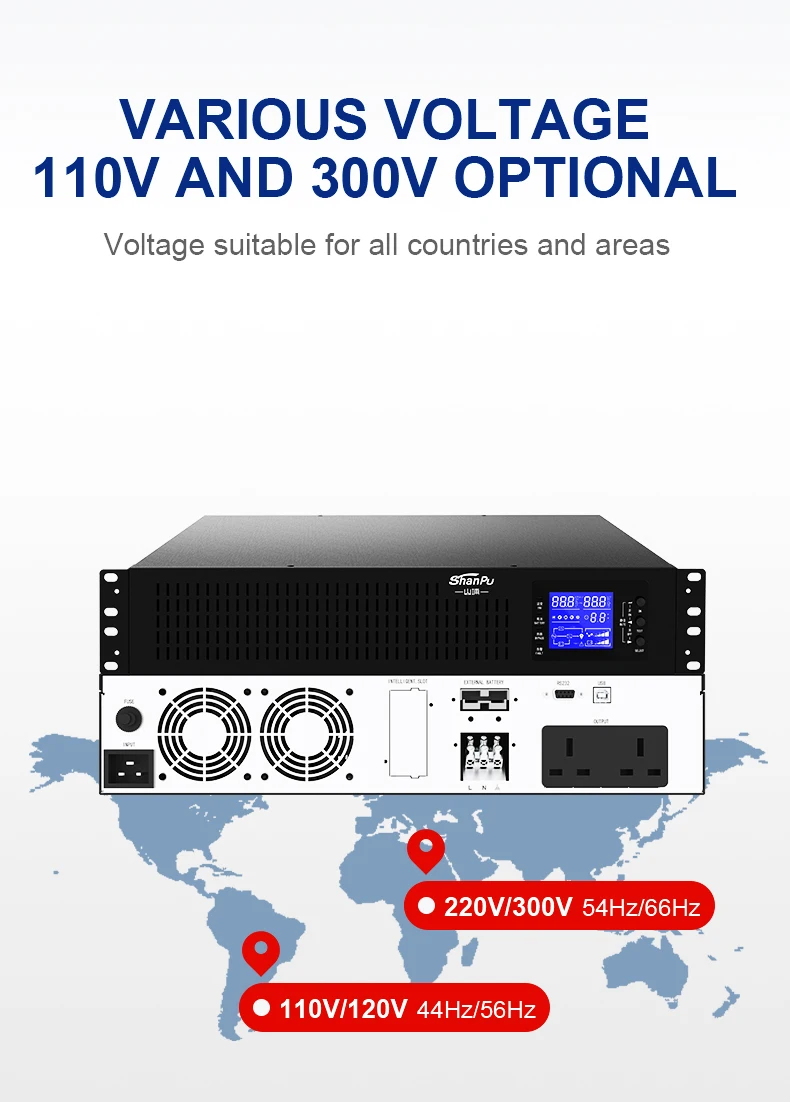

4. Wide input voltage range(110-300VAC)
5. Converter mode available
6. ECO mode for energy saving only available for 1-3KVA models
7. Generator compatible
8. Adjustable charging current via LCD or software(1A-6A)
9. Comprehensive display allows easy monitoring access of UPS status
2. Microprocessor control optimizes reliability
3. Output power factor correction
4. Wide input voltage range(110-300VAC)
5. Converter mode available
6. ECO mode for energy saving only available for 1-3KVA models
7. Generator compatible
8. Adjustable charging current via LCD or software(1A-6A)
9. Comprehensive display allows easy monitoring access of UPS status
|
Model
|
|
LD1KR(S)
|
LD2KR(S)
|
LD3KR(S)
|
||
|
Capacity
|
|
1kVA/1000W/900W
|
2kVA/2000W/1800W
|
3kVA/3000W/2700W
|
||
|
Input
|
Phase
|
L+N+PE
|
|
|
||
|
|
Voltage
|
110/120/208/220/230/240VAC
|
|
|
||
|
|
Voltage range
|
110~300VAC，110~176VAC、280~300VAC
|
|
|
||
|
|
Input frequency
|
50/60±6Hz±10Hz
|
|
|
||
|
|
Power factor
|
≥0.99
|
|
|
||
|
|
THD
|
≤4% THD Linear Load ，≤6% THD Non-linearLoad (PF=0.8)
|
|
|
||
|
|
Phase
|
L+N+PE
|
|
|
||
|
|
Output voltage
|
110/120/208/220/230/240VAC
|
|
|
||
|
|
AC voltage regulation
|
±1%
|
|
|
||
|
|
Frequency (synchronous range)
|
50/60Hz±0.1%
|
|
|
||
|
|
THD
|
≤2% THD Linear Load，≤4% THD Non-linear Load (PF=0.8)
|
|
|
||
|
|
Power factor
|
1.0
|
|
|
||
|
|
Transfer time
|
0ms
|
|
|
||
|
|
Overload
|
Utility mode ： 30min@102%~110% Load 10min@110%~130% Load 60s@130%~150% Load 1s@>150% Load
|
Battery mode： 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load
|
|
||
|
Efficiency
|
Mains mode
|
94.5%@220VAC
|
95.5%@220VAC
|
95.5%@220VAC
|
||
|
|
External Battery mode
|
89.5%@36VDC
|
91.5%@72VDC
|
91.5%@96VDC
|
||
|
|
Internal Battery mode
|
87.5%@24VDC
|
89.5%@48VDC
|
91.5%@72VDC
|
||
|
|
Battery type
|
LiFePO4
|
|
|
||
|
|
Standard Battery
|
LiFePO4 24V12Ah/24V24Ah/38.4V26Ah
|
LiFePO4 48V20Ah
|
LiFePO4 48V20Ah
|
||
|
|
External battery Voltage
|
24V/38.4V/48V
|
48V
|
48V
|
||
|
|
Maximum charging current
|
1~8A
|
|
|
||
|
Interface
|
Interface
|
RS232，SNMP、USB、EPO
|
|
|
||
|
|
Environment
|
-20~50℃
|
|
|
||
|
|
Operating humidity
|
20%~95%No condensation
|
|
|
||
|
|
Storage temperature
|
-20~50℃
|
|
|
||
|
|
Altitude
|
Up to 4000m，Refer to IEC62040
|
|
|
||
|
|
Noise
|
≤40db
|
|
|
||
|
|
L×D×H（mm）SIZE
|
24V12AH 380*438*88[2U] 38V28AH 380*438*88[2U]
|
48V20AH 500*438*88[2U]
|
48V20AH：500*438*88[2U] 96V20AH：500*438*130[3U]
|
||
|
|
Package size
|
530*475*183mm
|
|
|
||
|
|
N.W
|
14.7KG
|
|
|
||
|
|
G.W
|
15.9KG
|
|
|
||
